AC3000-P anechoic chamber use special construction to make sure the stability of the test，isolate the outside noise， reduce the background noise，the inner design can reduce the sound reverberate in the chamber which can make result more accurate and steady. For production line, the chamber is automatically enough for operation on site.

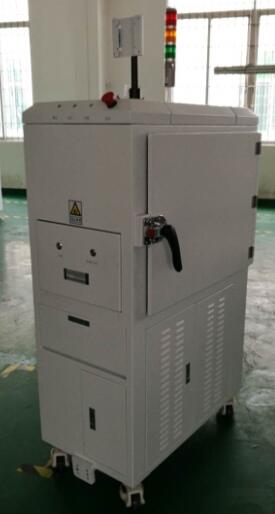

Front:

Back: All the connectors can be design as your require，we have 10 BNC connectors ，2 USB connectors and serial port ,etc.

The fixture drawer can be openned automatically, then put the cellphone under test on a specified holding jig. All your operator is safe enough for production line meanwhile the chamber can save more time to increase the efficiency.

Characteristic Description

       1.  The outside is metal plate with thickness 2mm.

       2.  Operation Mode:  Air cylinder to drive

       3.  Isolation: Outside Noise>80dB, Inside Noise<40dB, Background Noise Inside <35dB.

       4.  Outside Dimension: 740（L）* 450（W）* 640（H）mm

       5.  Connector:  DB25    1

                                DB9      1

                                USB      2

                                BNC     10
