Current Location>Products>Acoustics Test>Head and Torso Simulator>HD400 Headphone Test Jig

Product

Introductions

HD400 is specially designed for headphone test, including 1pcs test jig, 1pcs Artificial Mouth AM3000, 2pcs Artificial Ear (2pcs AE1000 and test platform, or 2pcs AE2000 and soft pinna).HD400 can be used for all kinds of headphone tests, including headset, in-ear headphone or earphone. Also, alterable direction of AM3000 can fit the tests of microphones at different parts of the headphone.

Parameters

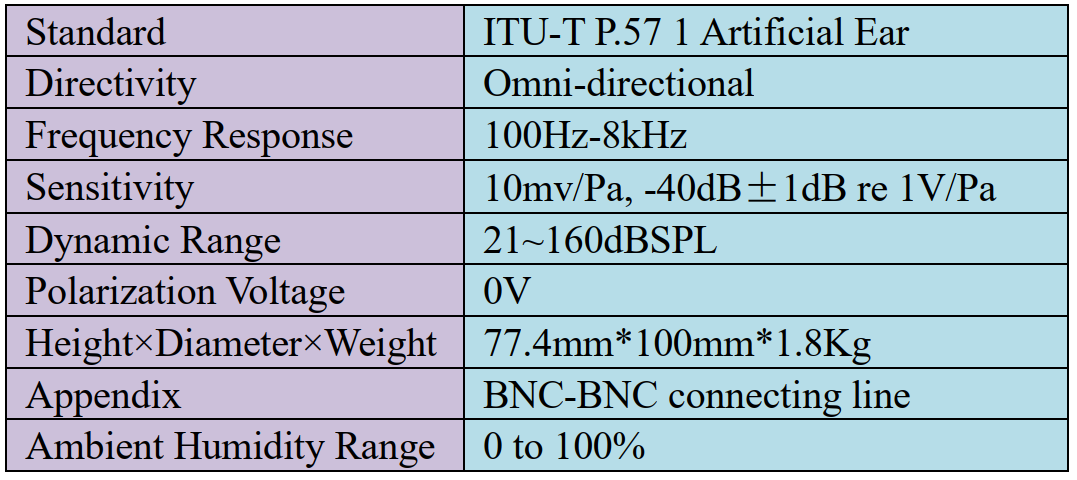

1、AE1000

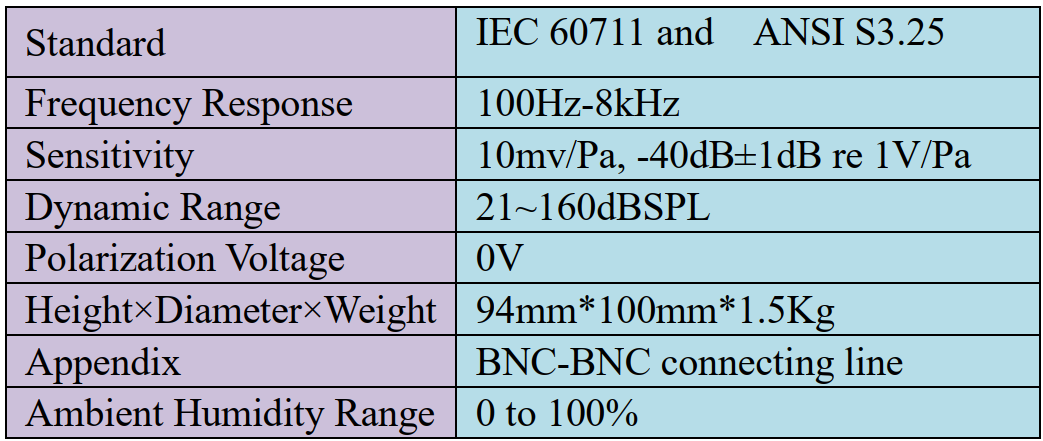

2、AE2000

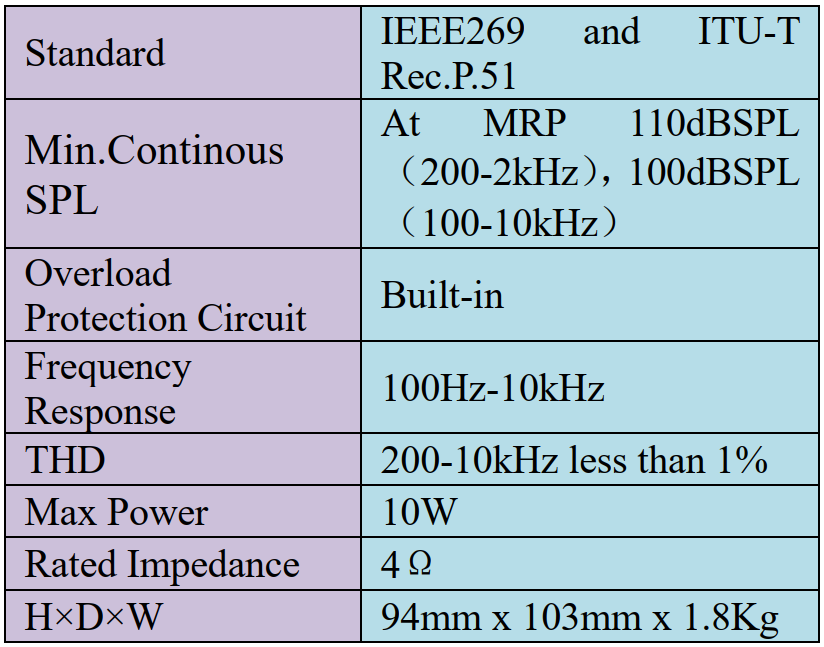

3、AM3000

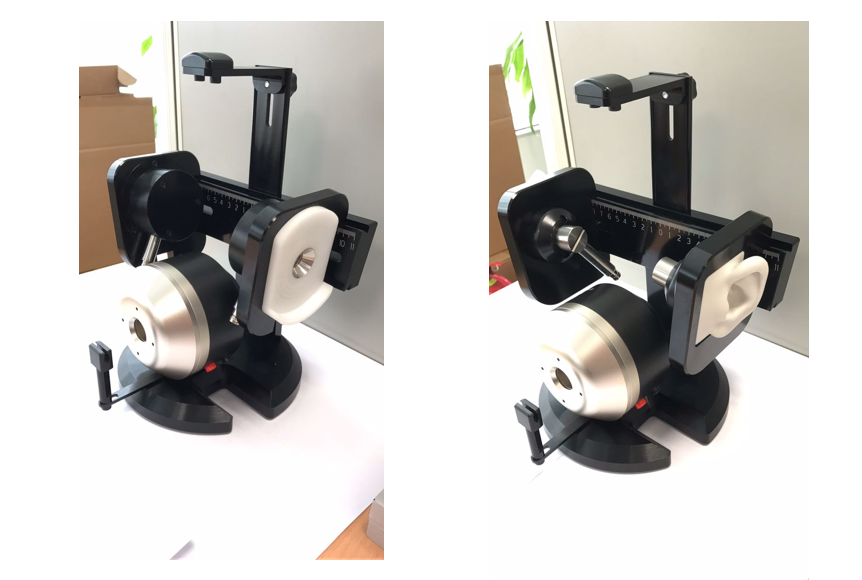

Pictures of HD400

Left test jig is the first version of HD400, which is built with two AE1000 Artificial Ear and one AM3000 Artificial Mouth. And in the right, you see the second version of HD400 built with two AE2000 Artificial Ear, one Artificial Mouth and two pinna.
